YX41-42/52/62/72 U-Uhaped Photovoltaic Bracket Forming Machine

YX41-42/52/62/72 U-Uhaped Photovoltaic Bracket Forming Machine

YX41-42/52/62/72 U-Uhaped Photovoltaic Bracket Forming Machine

YX41-41/52/62/72 Photovoltaic bracket punching production line(CU-shaped steel intelligent punching machine) is used to produce brackets related to the electrical industry,and the finished products are lap brackets for multi-functional applications.
  • Material Thickness :

    1.5-3.0 mm
  • Body Frame :

    H450
  • Forming Station :

    27 steps
  • Yield Strength :

    235-345Mpa
  • Main Motor :

    30KW+30KW,Frequency speed control
  • Driving :

    Motor drive,gear chain drive
  • Material :

    Zinc aluminum magnesium,galvanized sheet,cold rolled sheet,black strip steel.
  • Roller Material :

    Made from Cr12Mov heat treatment
  • Forming Speed :

    30-40 m/min

YX41-42/52/62/72 U-Uhaped Photovoltaic Bracket Forming Machine

Machine Features

YX41-41/52/62/72 Photovoltaic bracket punching production line(CU-shaped steel intelligent punching machine) is used to produce brackets related to the electrical industry,and the finished products are lap brackets for multi-functional applications. It is often used to build muti-purpose brackets in the fields of solar photovoltaic brackets,building circuit electrical engineering facilities,etc.

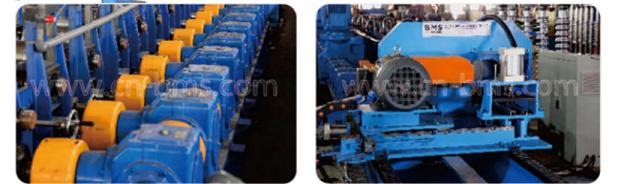

                        Gear Box                                                Post Cutting

Machine Parameters

1.Material Thickness: 1.5-3.0 mm

2.Forming Speed:30-40 m/min

3.Yield strength:235-345Mpa

4.Body Frame:H450

5.Forming station:27 steps(Using ductile iron arch,equipped with water cooling device to cool down)

6.Main Motor:30KW+30KW,Frequency speed control

7.Driving:Motor drive,gear chain drive

8.Roller material:Made from Cr12Mov heat treatment

9.Material:Zinc aluminum magnesium,galvanized sheet,cold rolled sheet,black strip steel.

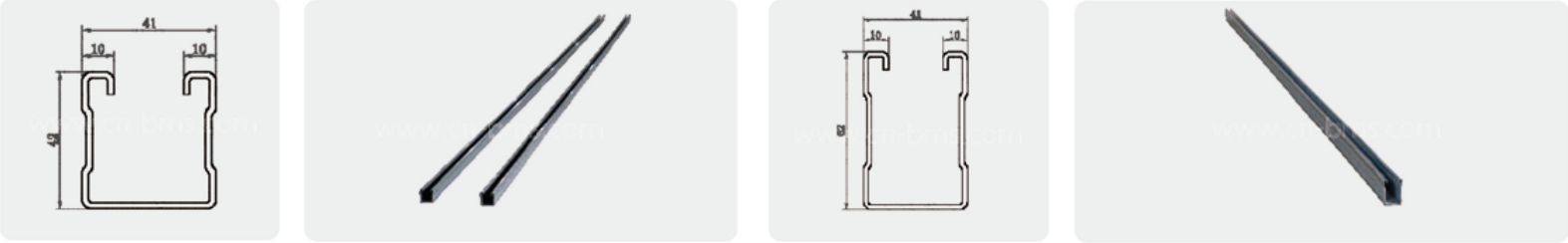

Profile Drawing
