AUTO Solar Panel Bracket Omega Purlin Roll Forming Machine(Luxury Type)

Equipment Advantages

1.The Production Line Can Product a Maximun Thickness Of 4.0mm.

2.The Production Line Can Produce a Variety Of Specifications And Automatic.

3.In order To Reduce The Deformation Of The Incision,The Equipment Uses One Profile And One Mold.

Profile Drawing

Sample Show

Material

Material Thickness:2.0-4.0mm
Applicable Material:GI/GL/PosMAC
Material Yield Strength:235-390 Mpa

Feeding Width:About 190-450mm

Work Flow

Uncoiler→Punching Device→Feeding Guide→Rolling Forming System→Hydraulic Post Cutting→Exit Rack

Introduction to machine decomposition

1) 5T-500 Hydraulic Uncoiler: one set

Hydraulic control of the inner holes of the steel roll contraction and stopping

MAX. Feeding width: 600 mm

Inner diameter range of the coil: 470-560mm, outer diameter: 1500mm

Hydraulic motor: 3KW, variable frequency speed adjustment

2) Feeding And Leveling Device

Up three, down four, a total of seven-axis leveling device

With feed guide rail, the body frame is welded from H450 steel

Side wall thickness: Q235 t30mm

The shaft is made of GCr15 steel, diameter= φ105mm, precision machining, quenching and tempering

Use two motors to automatically adjust the feed width

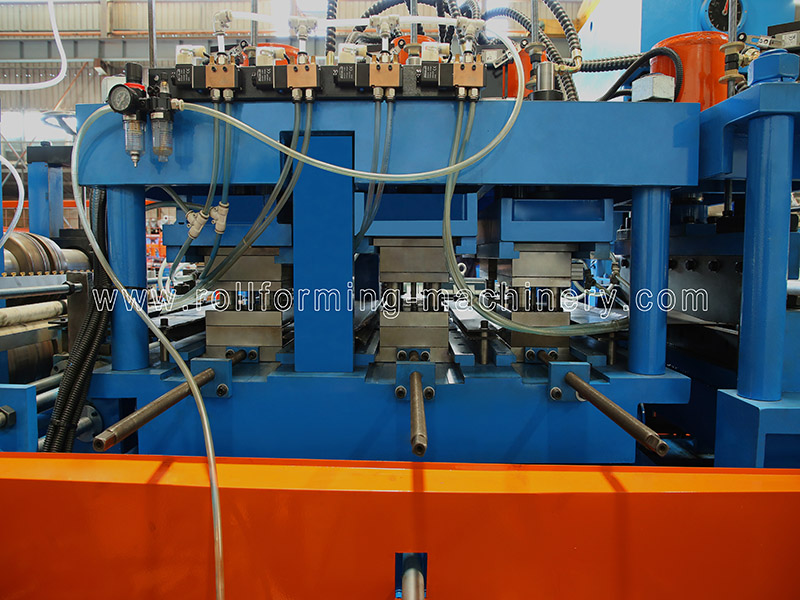

3) Hydraulic Pre-Cutting&Punching Device

Pre-punching and pre-cutting, adopts the same hydraulic system

Hydraulic motor: 18.5kW, hydraulic range: 0-25MPa (250Bar)

Material of the Punching  Cutting tool: mold steel CR12MOV (= D2 steel, with a million stroke life), heat treatment to HRC58-62 degrees

Three -cylinder perforation system, punching both on Web side and Height(Flange) side

4)Lubricant Device

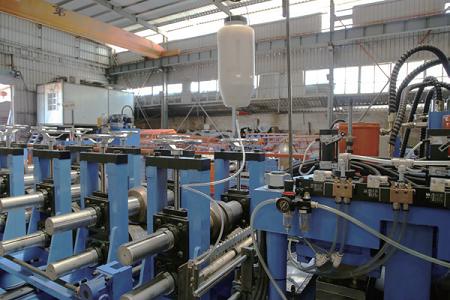

5)Roll Forming Mill

The body frame is welded with H450 steel

Arched structure

Made by CR12 steel, CNC lathe, heat treatment, HRC58-62

Axial diameter = 95, precision processing

Gear/sprocket transmission, about 24 steps formed

Main motor = 22kW+22kW, frequency speed adjustment

6)Straighter Device

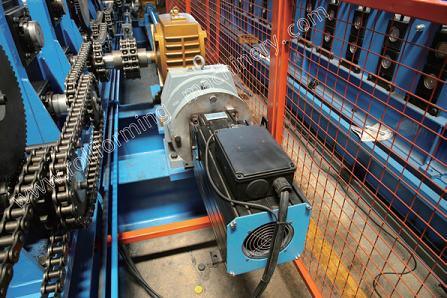

7)Servo Motor Drive

8) Post Hydraulic Cutting Device

Stop to cut, two -piece cutting design without feeding

Hydraulic motor: 18.5kW, cutting pressure: 0-16MPa

Knife material: CR12Mov (= SKD11, has at least one million cutting life), heat treatment to HRC58-62 degrees

9)Hydraulic station

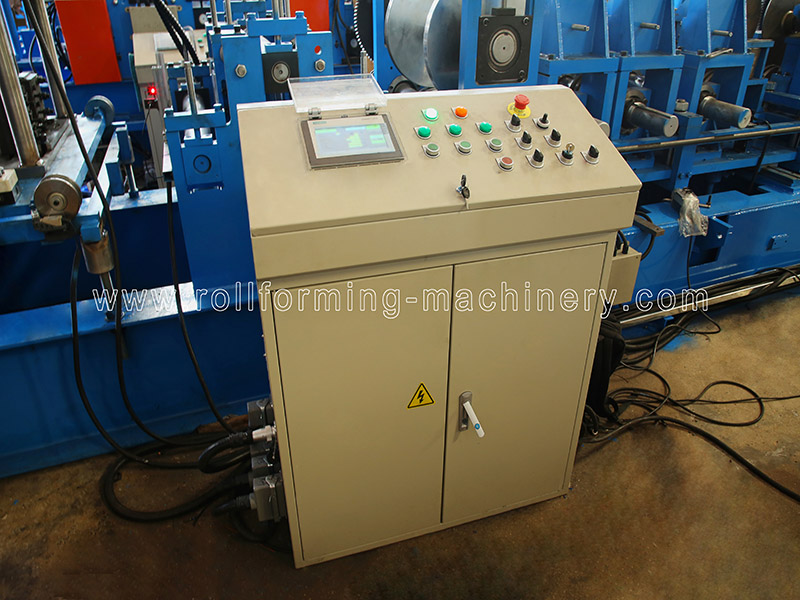

10)PLC Control System

Automatic control quantity and cutting length

Enter production data (production batch, number of production pieces, production length, etc.) on the touch screen,

Automatically complete production.

Combine: PLC, inverter, touch screen, encoder, etc.

11)Exit Rack

Un-powered, One unit,with rollers on it for easy movement.

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container by steel rope and lock, suitable for long-distance transportation.

Application

AUTO Solar Panel Bracket Omega Purlin Roll Forming Machine(Luxury Type) is Photovoltaic bracket forming equipment is a cold forming machine used to produce brackets related to the electrical industry.It is commonly used to build multi-purpose brackets that make up solar photovoltaic brackets, building circuits, electrical engineering facilities, etc.

Our advantage

1.Over 25 years experience in roll forming industry,nearly 10 years of OEM experience for Taiwan roll forming machines and one of China TOP 3 high quality roll forming machinery manufacturers and exporters (BMS has exported to over 100 countries and regions).

2.Industry's best warranty in China 2 years parts & 2 years labor and 7*24 award winning customer service within 24 hours.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 60 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 100 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
