Material Thickness :
1.5-2.5 mmBody Frame :
H450Forming Station :
28 stepsYield Strength :
450-550MpaMain Motor :
30KW ,Frequency speed controlDriving :
Motor driving,gear/sprocket drivingCutter Material :
Cr12Mov heat treatment HRC58-62 DegreeForming Speed :

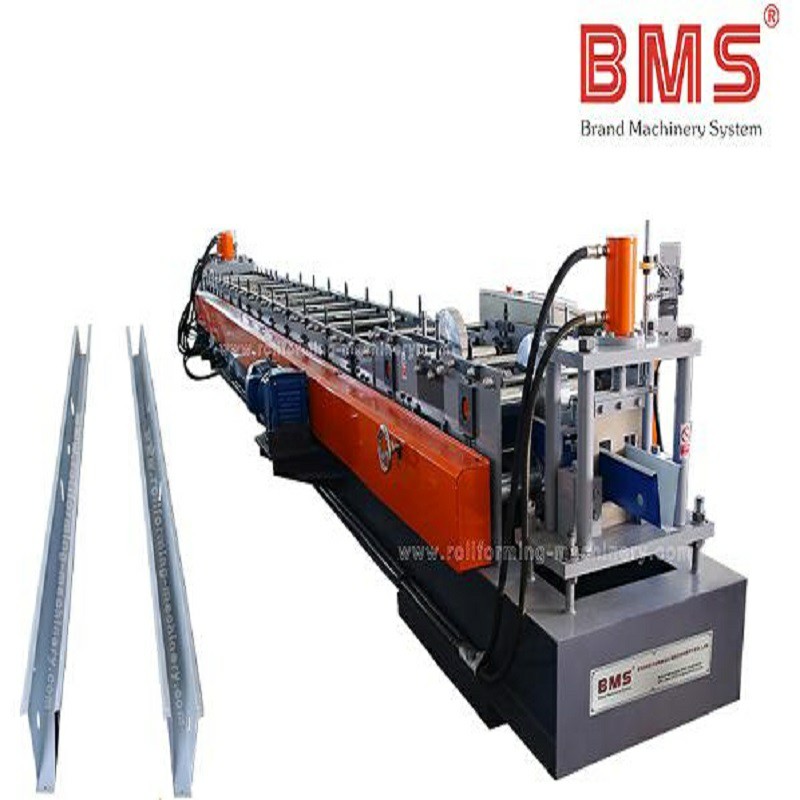

18-20 m/minTophat Section Roll Forming Machine
Machine Features
1.Suitable for POSCO Magnesium Aluminum Alloy and Nippon SuperDyma steel.
2.Good bending resistance and flatness,easy installation and use,load bearing with long service life.
Main Roll Forming Machine Post Cutting Punching Mould
Machine Parameters
1.Material Thickness: 1.5-2.5 mm
2.Forming Speed:18-20 m/min
3.Yield strength:450-550Mpa
4.Body Frame:H450
5.Forming station:28 steps
6.Main Motor:30KW ,Frequency speed control
7.Driving:Motor driving,gear/sprocket driving
8.Cutter material:Cr12Mov heat treatment HRC58-62 Degree

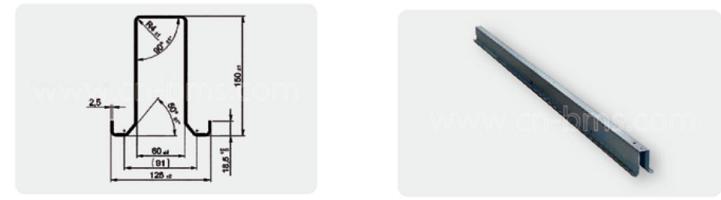

Profile Drawing
