Solar Panel Upright Rack Roll Forming Machine

Solar Panel Upright Rack Roll Forming Machine

Solar Panel Upright Rack Roll Forming Machine

Solar Panel Upright Rack Roll Forming Machine is used to produce brackets related to the electrical industry, and the  products are lap brackets for multi-function applications.
  • Lead Time :

    60 Workdays
  • Roll Forming Speed :

    14-16m/min
  • Weight :

    11T
  • Model No. :

    YX95-100
  • Shipping Port :

    Xiamen
  • payment :

    TT/LC

                                                                                           Solar Panel Upright Rack Roll Forming Machine

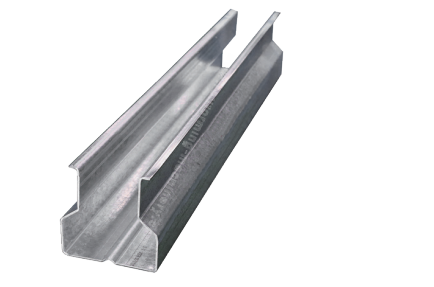

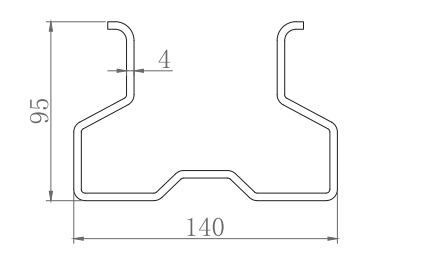

Profile Drawing

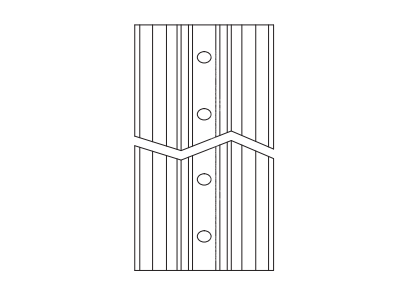

Punching Hole Drawing

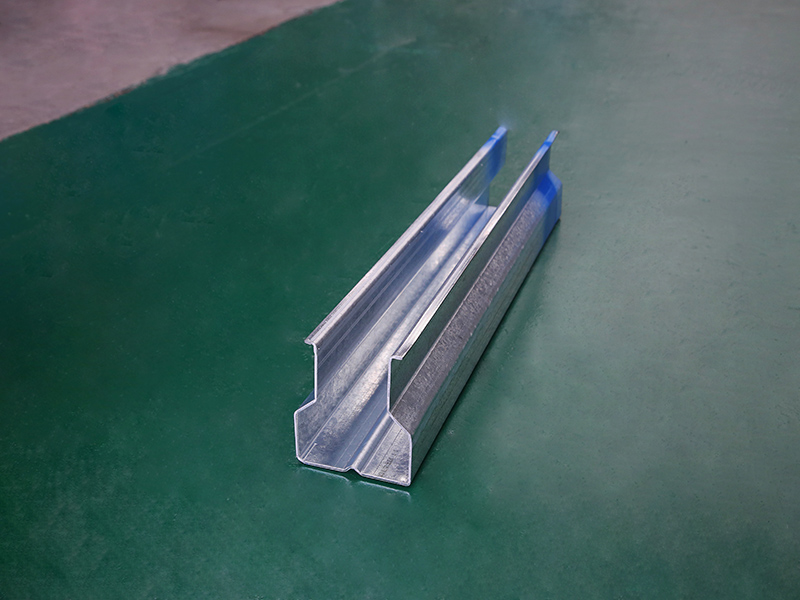

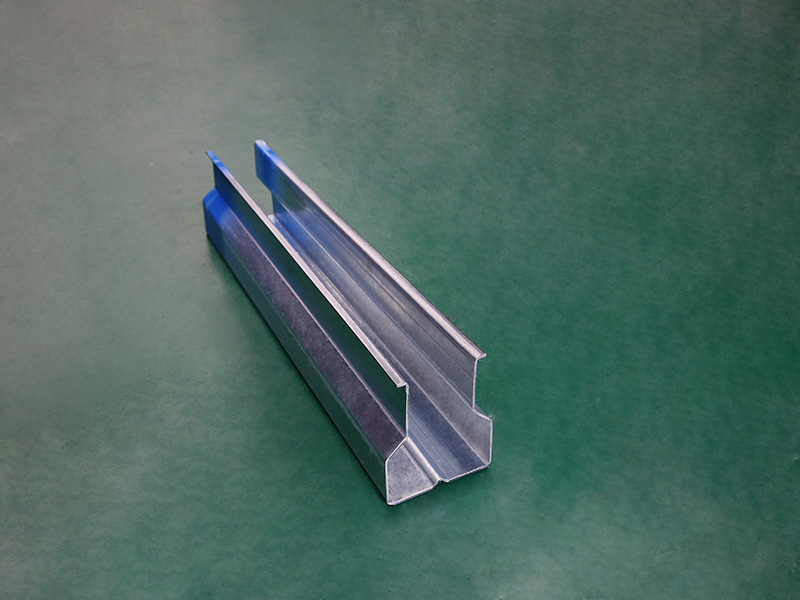

sample show

Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine

Material information

Material Thickness: 2.0-3.0mm
Applicable material:Galvanized Steel(GI),Cold Rolled Coils(CRC)
With yield strength G340-550Mpa

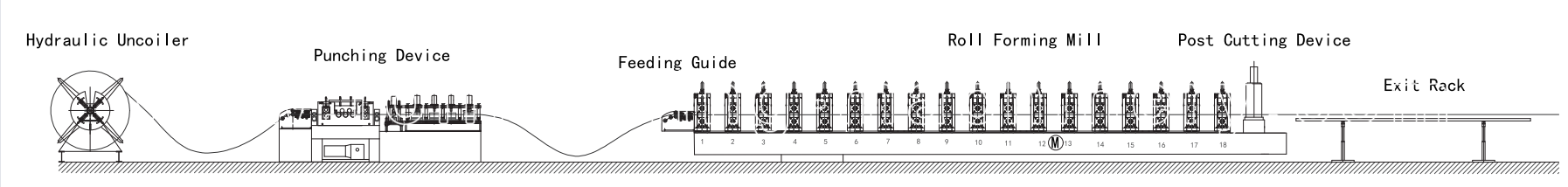

Work Follow





Machine Components

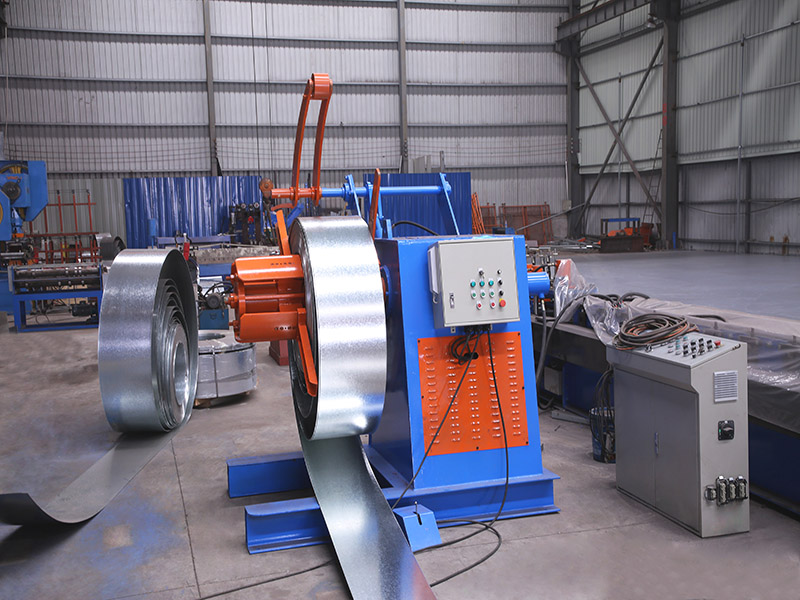

1) 5T-500 Hydraulic Uncoiler: one set

Hydraulically control the shrinkage and stop of the inner hole of the steel coil

Maximum feeding width: 600mm

Coil inner diameter range: 508±30mm, outer diameter: 1500mm

Maximum capacity: 5 tons, motor: 3KW, frequency conversion and speed regulation

Oil pump motor: 3KW, with pressure arm

Increase automatic feeding power and self-stopping device

Heavy Duty Shelf Pillar Roll Forming Machine

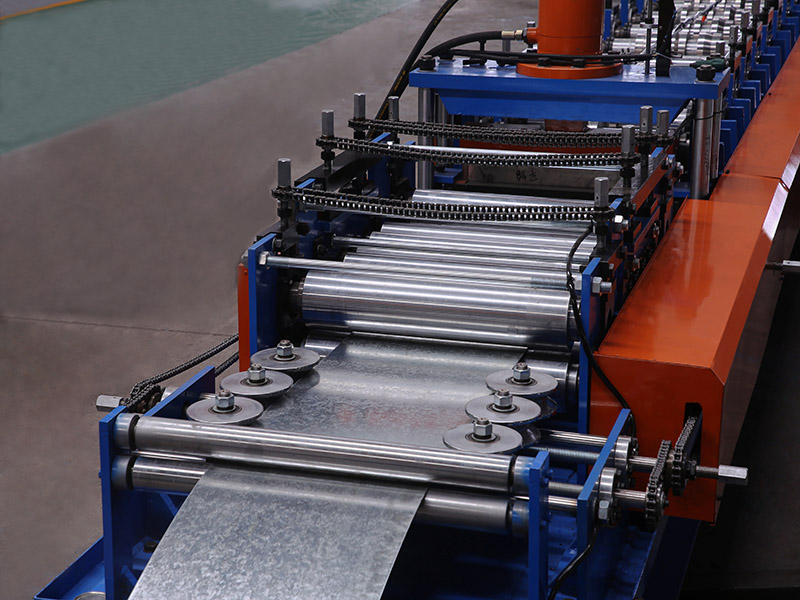

2)Leveling Device

Up three, down four, a total of seven-axis leveling device

With feed guide rail, the body frame is welded from H450 steel

Side wall thickness: Q235  t20mm

The shaft is made of 45#steel, diameter = φ90mm, hard chrome coating, precision machining



Heavy Duty Shelf Pillar Roll Forming Machine

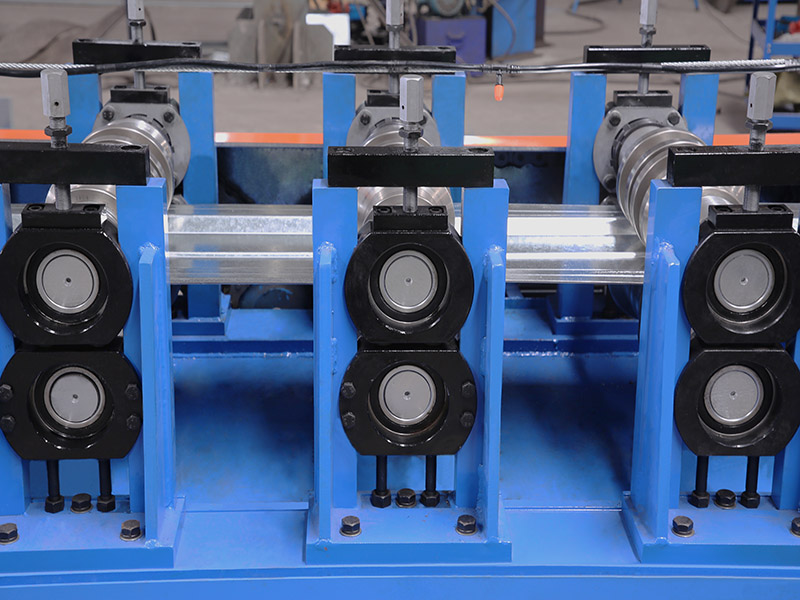

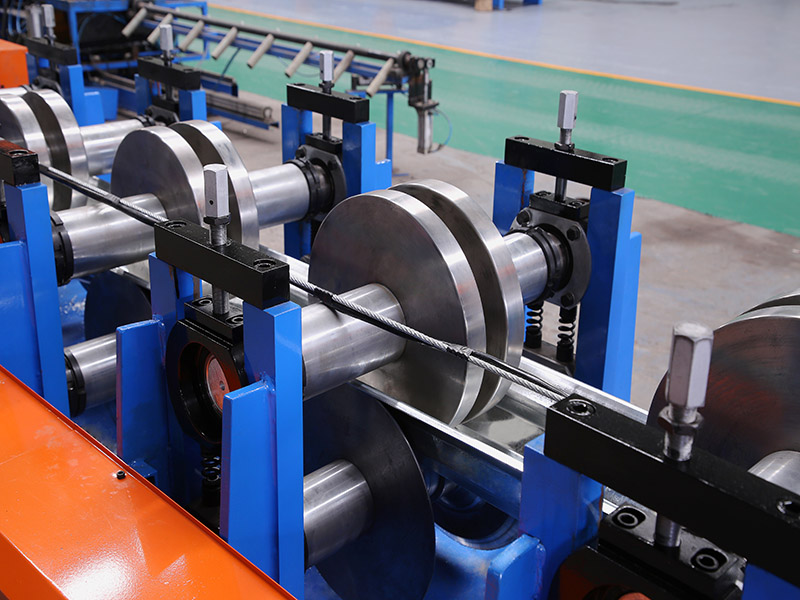

3) Roll Forming Machine

The body frame is welded from H450 steel.

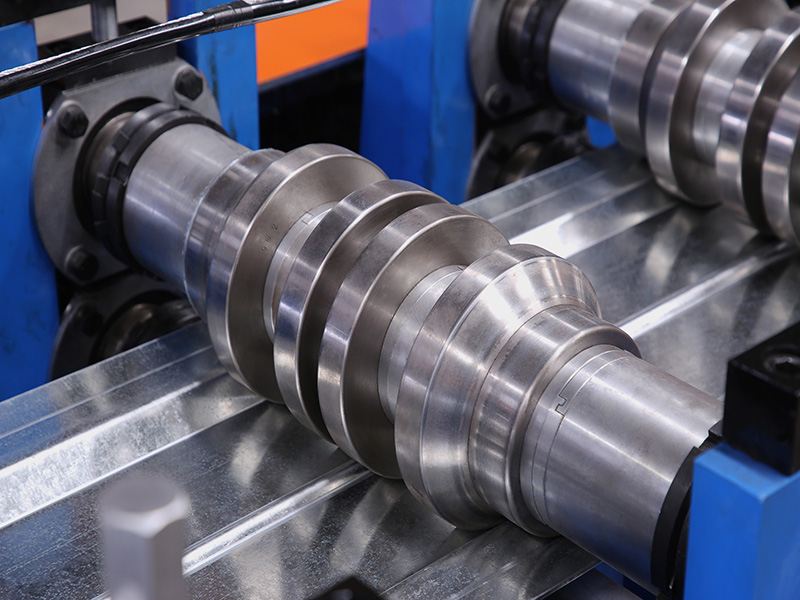

The roller is made of Cr12 steel, CNC lathe, heat treatment, and hard chrome coating.

The thickness is 0.04mm, and the surface is mirror-treated (longer service life and anti-rust).

Shaft diameter =ф95, precision machining.

Gear/sprocket drive, formed in about 30 steps.



Main motor=15KW*2, frequency conversion and speed regulation.


Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine

With Arch Structure

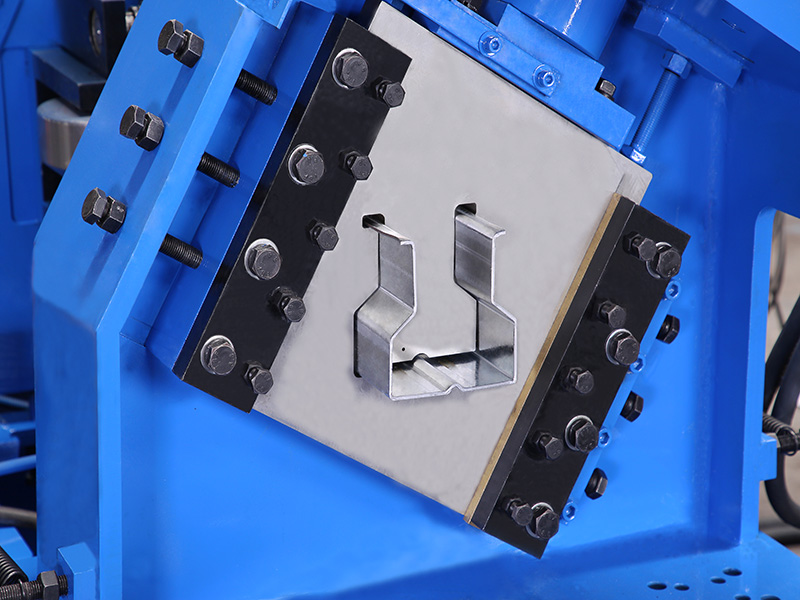

4Post Hydraulic Cutting Device

Stop to cut, two-piece cutting blade design, no blanking.

Hydraulic motor: 7.5KW; cutting pressure: 0-14Mpa

Tool material: Cr12MoV (=SKD11, cutting life is at least one million times), heat treated to HRC58-62 degrees.

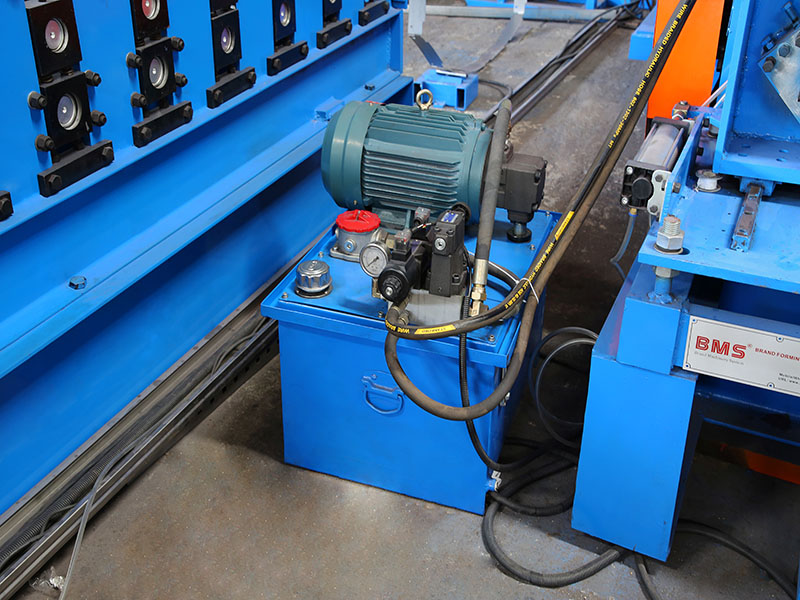

The cutting power is provided by an independent engine hydraulic station.

Heavy Duty Shelf Pillar Roll Forming Machine





Heavy Duty Shelf Pillar Roll Forming Machine

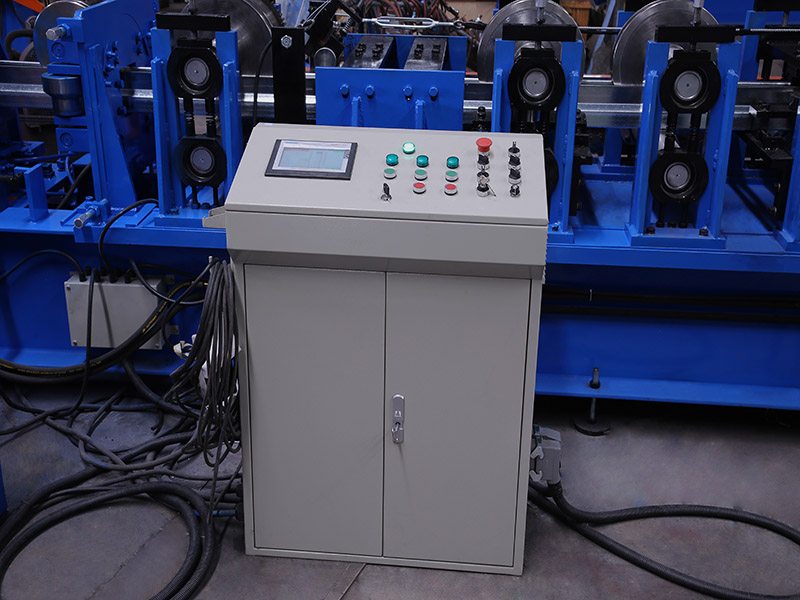

5) PLC Control System

Automatic control of quantity and cutting length.

Enter production data (production batch, number, length, etc.) on the touch screen.

It can automatically complete production.

Combination: PLC, inverter, touch screen, encoder, etc.


Heavy Duty Shelf Pillar Roll Forming Machine

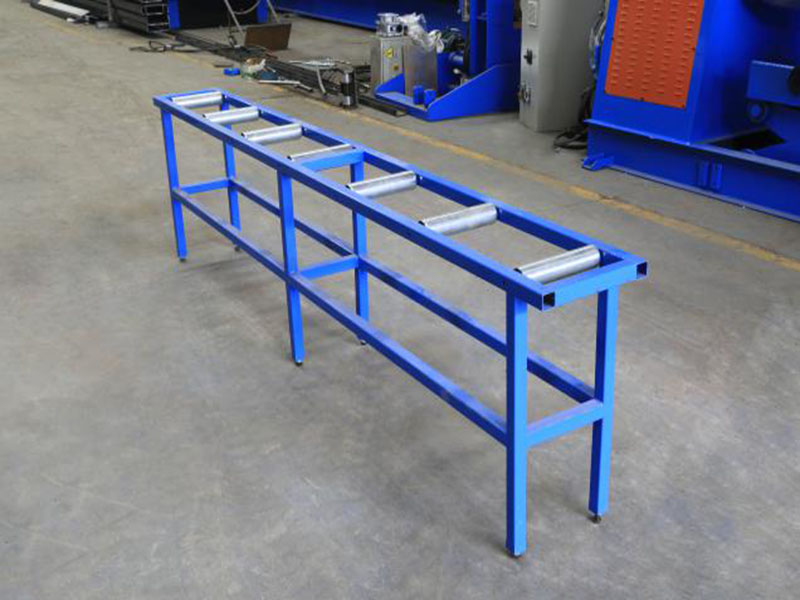

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.









Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container by steel rope and lock, suitable for long-distance transportation.







After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 60 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 100 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
