Solar Panel L Angle Roll Forming Machin

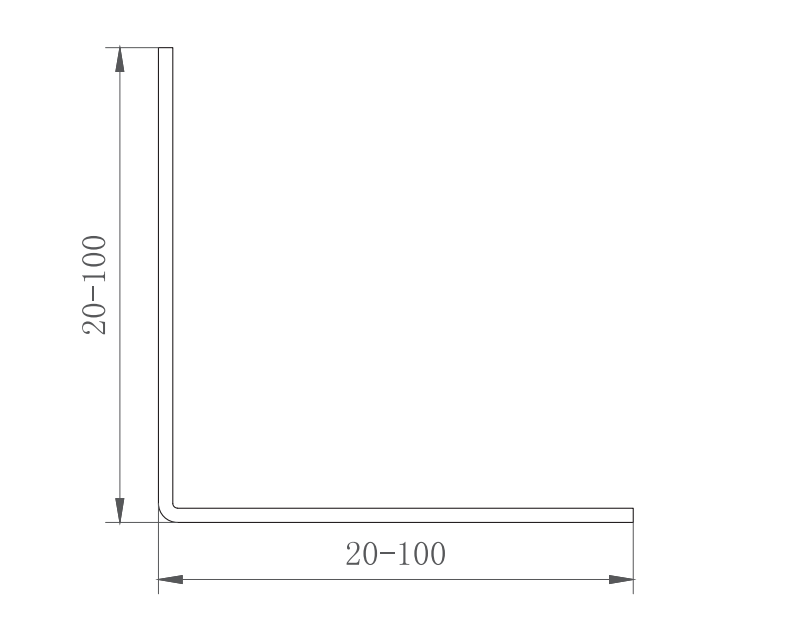

Profile Drawing

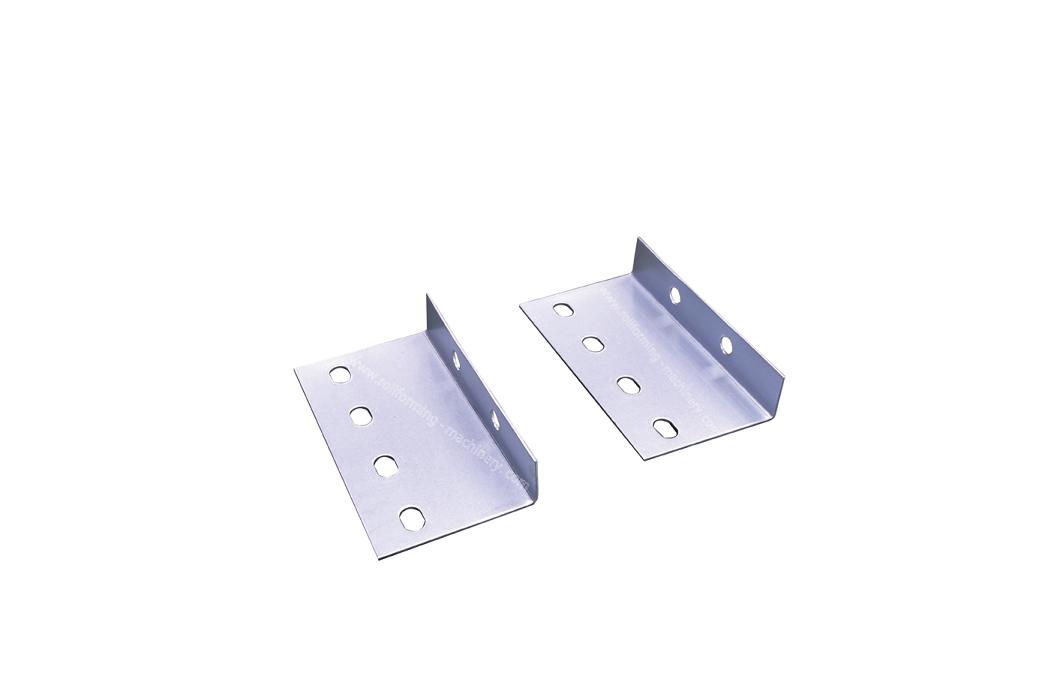

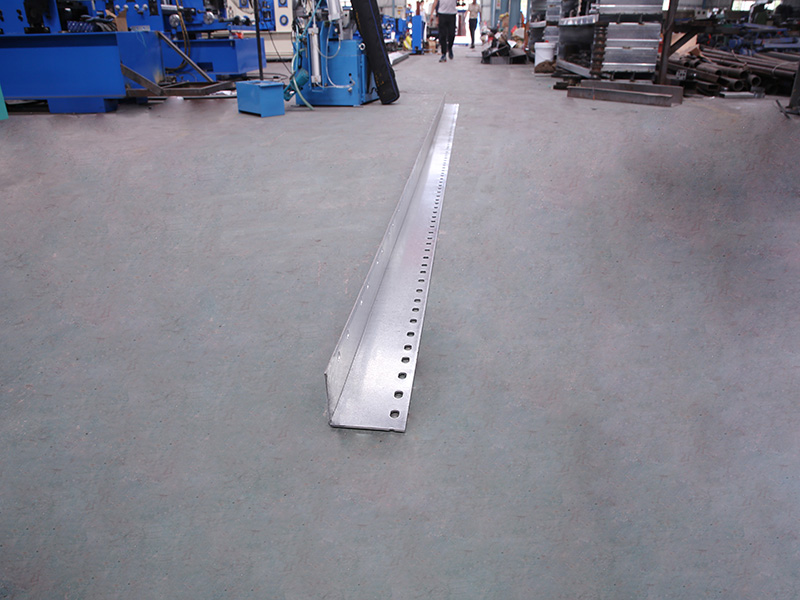

Sample Show

Material Information

Material Thickness:0.8-2.0mm
Applicable material:Galvanized Steel(GI)/GL/PosMAC
Material Yield Strength 235-390Mpa

Feeding Width:About 39-199mm

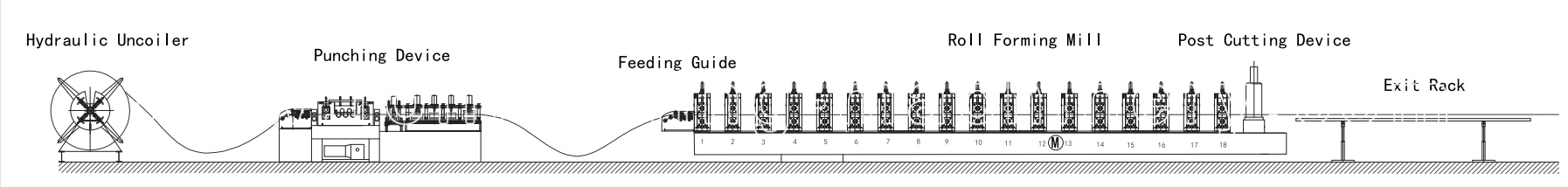

Work Follow

Hydraulic Uncoiler→Feeding and Leveling Device→Hydrualic Pre-Cutting&Punching Device→Rolling Forming Mill→Hydraulic Post Cutting→Exit Rack

Machine Components

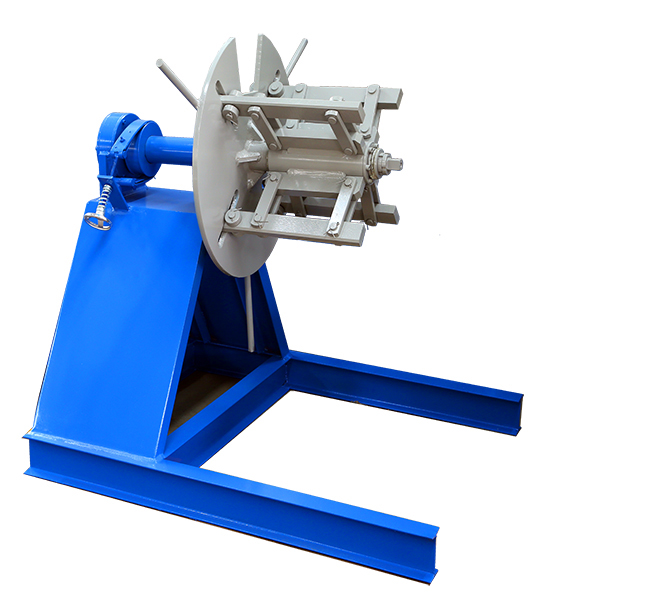

1) Manual Decoiler: one set

Manually control the shrinkage and stop of the inner hole of the steel coil

Maximum feeding width: 300mm

Coil inner diameter range: 508±30mm

Maximum capacity: 3 tons

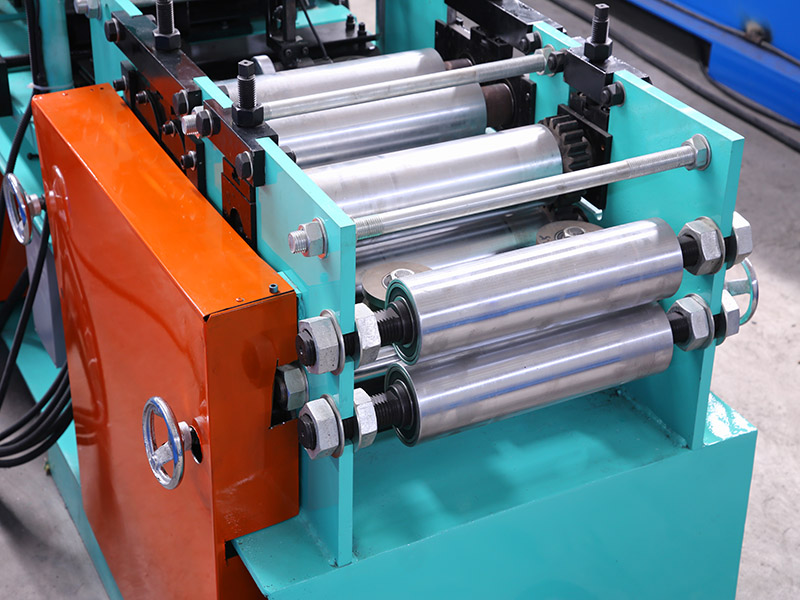

2) Feeding And Leveling Device

A total of five-axis leveling device for upper two, lower three

Equipped with a feed guide rail, the body frame is welded from H450 steel.

Wall panel thickness: Q235 t18mm

The shaft is made of 45#steel, diameter = φ90mm, hard chrome coating, precision machining

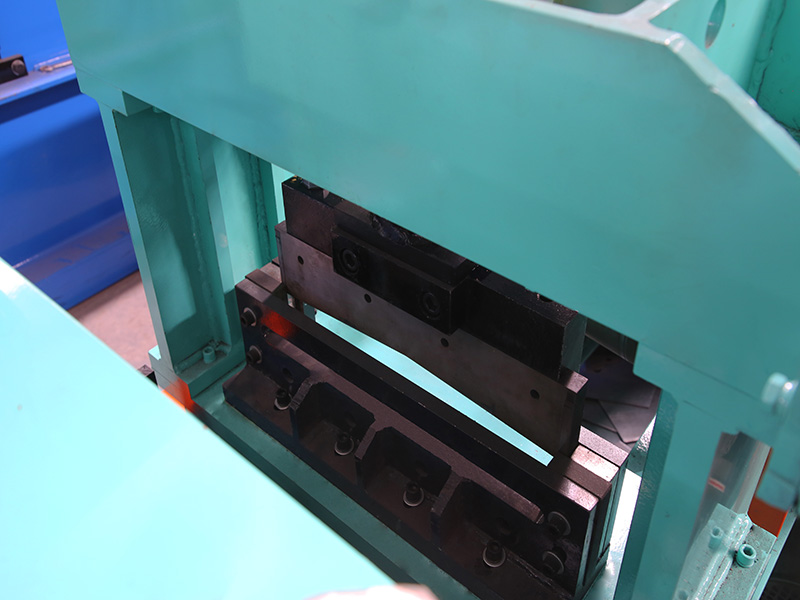

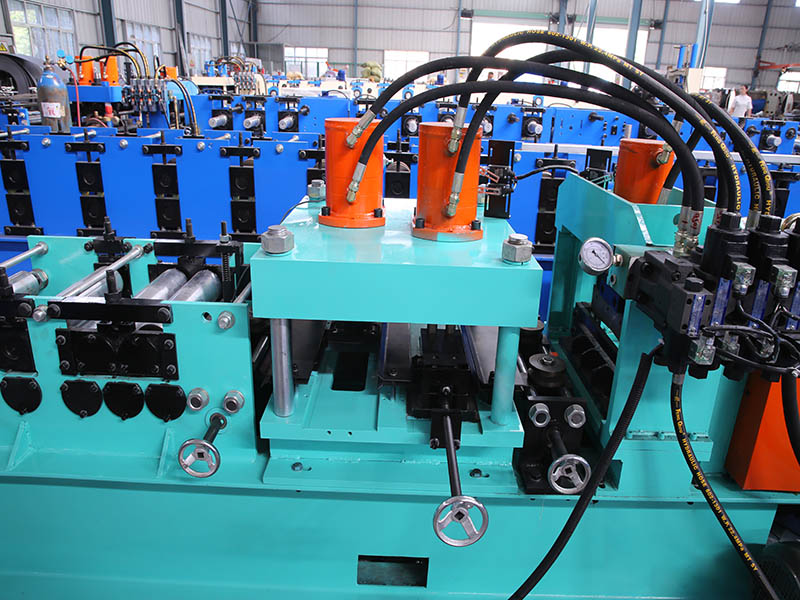

3) Hydraulic Pre-Cutting&Punching Device

Pre-punching and pre-cutting, using the same hydraulic system

Hydraulic motor: 5.5KW, hydraulic range: 14Mpa

Punching and cutting tool materials: Mold steel Cr12MoV (=D2 steel, with one million times punching/cutting life), heat treated to HRC58-62 degrees

2-cylinder hole punching system for punching on Web and Flange.

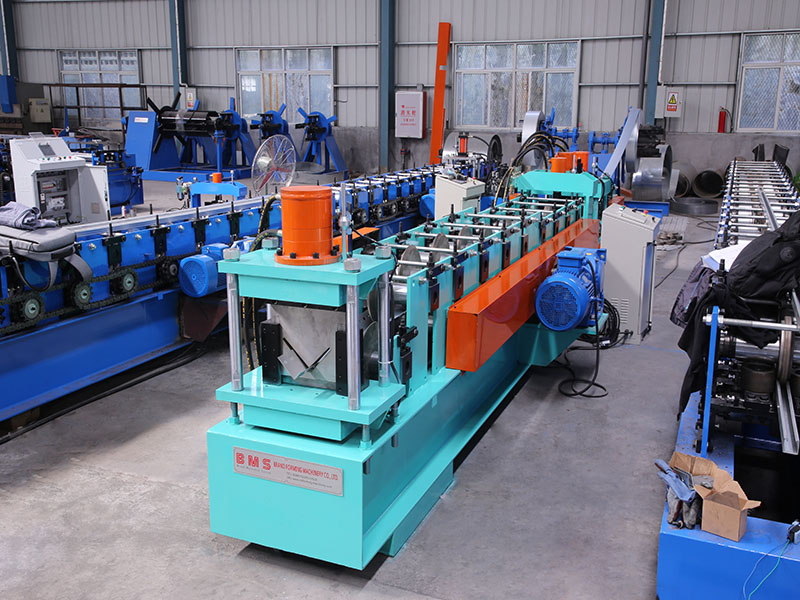

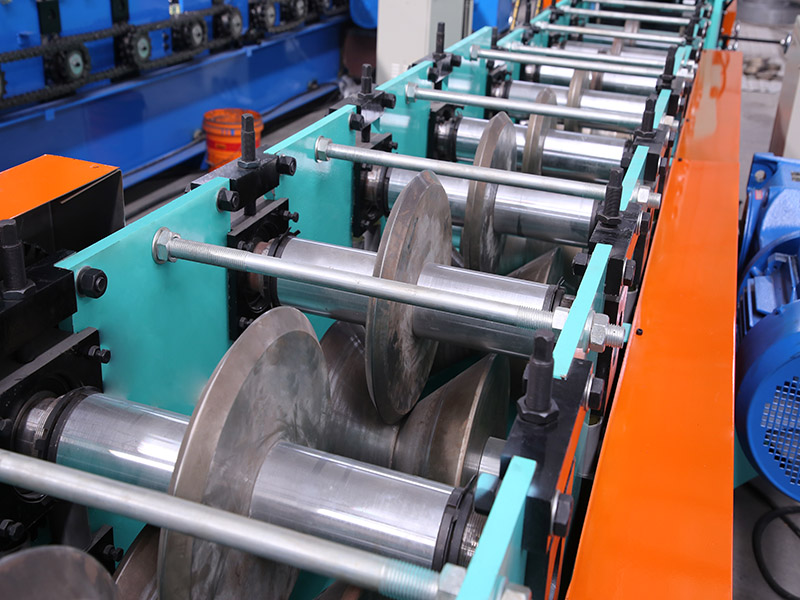

4) Roll Forming Machine

The body frame is welded from H450 steel

Side wall thickness: Q235 t18mm

The roller is made of GCr15 steel, CNC lathe, heat treatment, thick chrome coating 0.04mm, and the surface is mirror treated (longer service life, anti-rust)

Shaft diameter=ф75/90, precision machining

Gear/sprocket drive, about 9 steps forming

Main motor (Polaroid brand) =5.5KW, frequency conversion and speed regulation

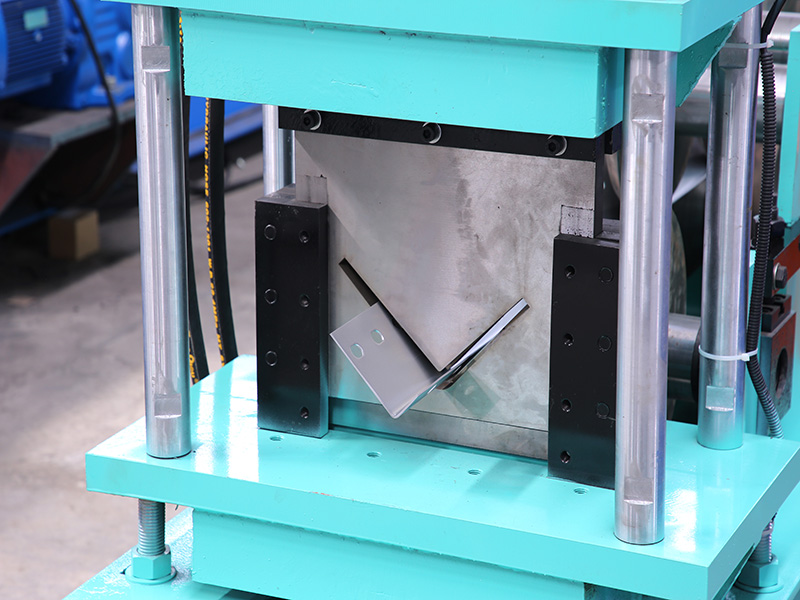

5) Post Hydraulic Cutting Device

stop to cut, two-piece cutting blade design, no blanking.

Hydraulic motor: 4KW, cutting pressure: 0-14Mpa.

Tool material: Cr12MoV (=SKD11, cutting life is at least 1 million times), heat treated to HRC58-62 degrees.

6)PLC Control System

Automatic control of quantity and cutting length

Enter production data (production batch, number, length, etc.) on the touch screen，

It can automatically complete production.

Combination: PLC, inverter, touch screen, encoder, etc.

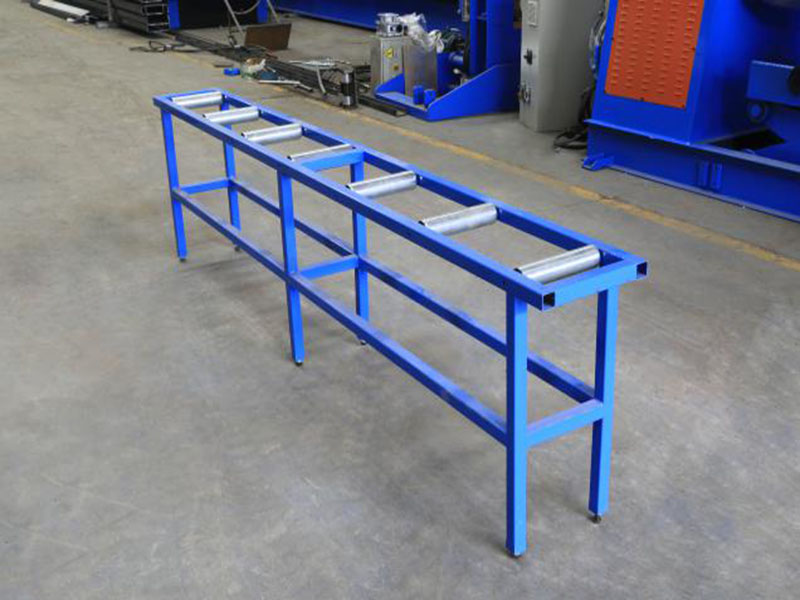

7)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

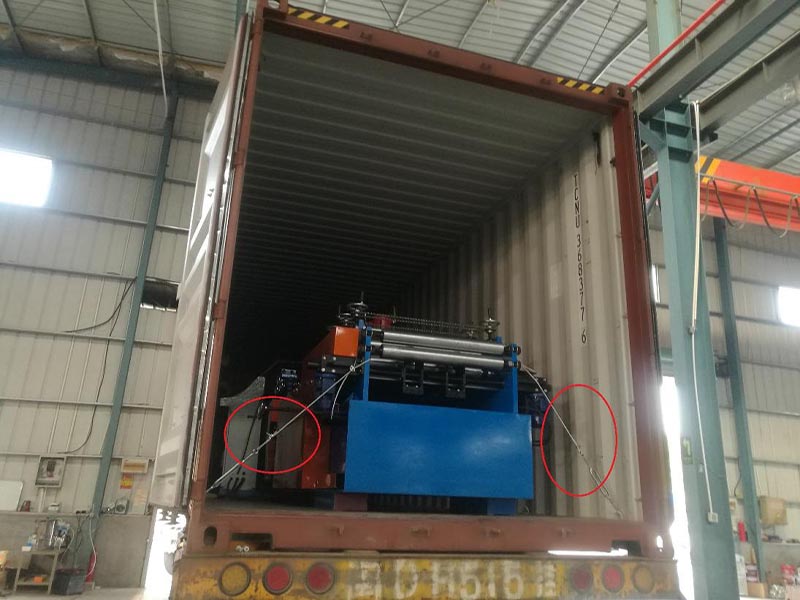

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 45 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 100 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
