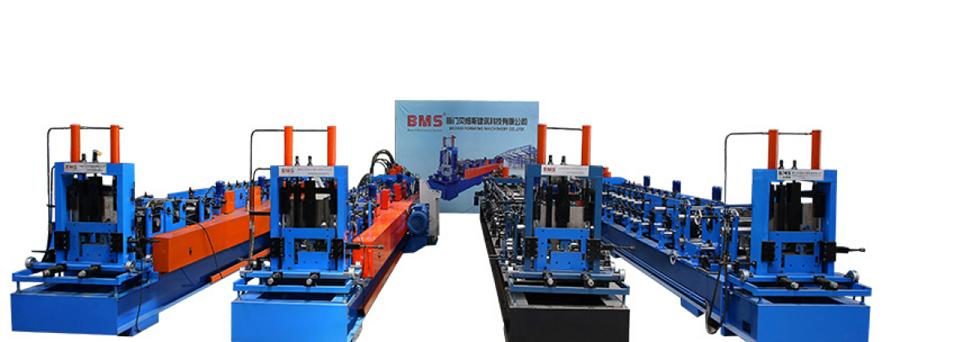

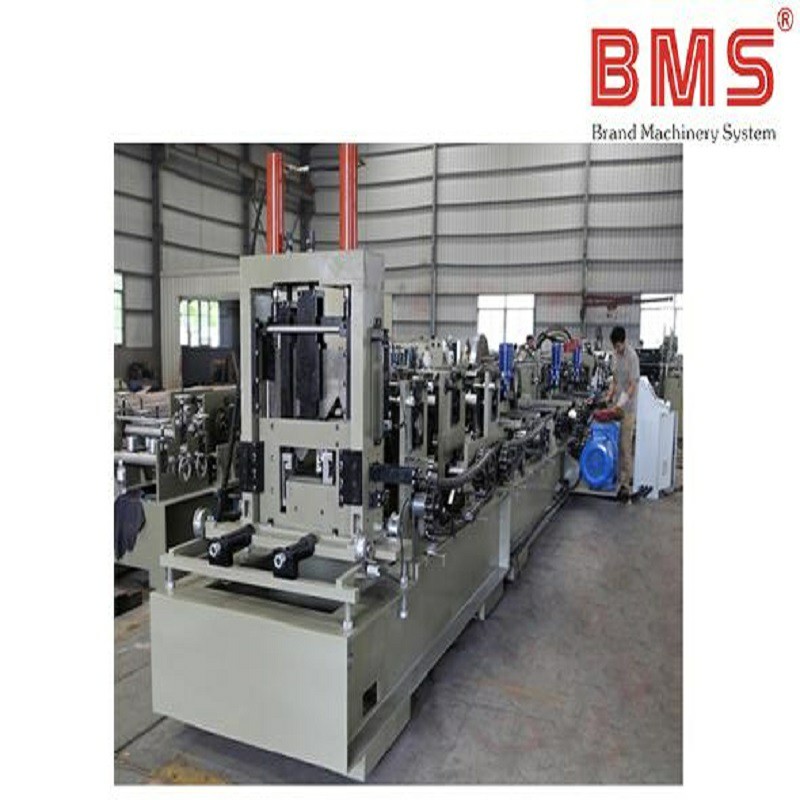

CZ Purlin Roll Forming Machine-Fully Automatic type

CZ Purlin Roll Forming Machine-Fully Automatic type

The next Generation Purlin Rollforming，offers the high level of Flexibility in the purlin market Worldwide！Heavy duty design by Taiwan，more robust and more powerful than other Chinese purlin machines.

Introduction of CZ Purlin Roll Forming Machine-Fully Automatic type

The CZ channel Interchange unit of CZ Purlin Roll Forming Machine-Fully Automatic type both are controledoy PLC and change by set on touch panel!Also we have Semi Automatic CZ Purlin Machine available

1.Raw material:galvanized sheet,black sheet: 1.5-3.0mm

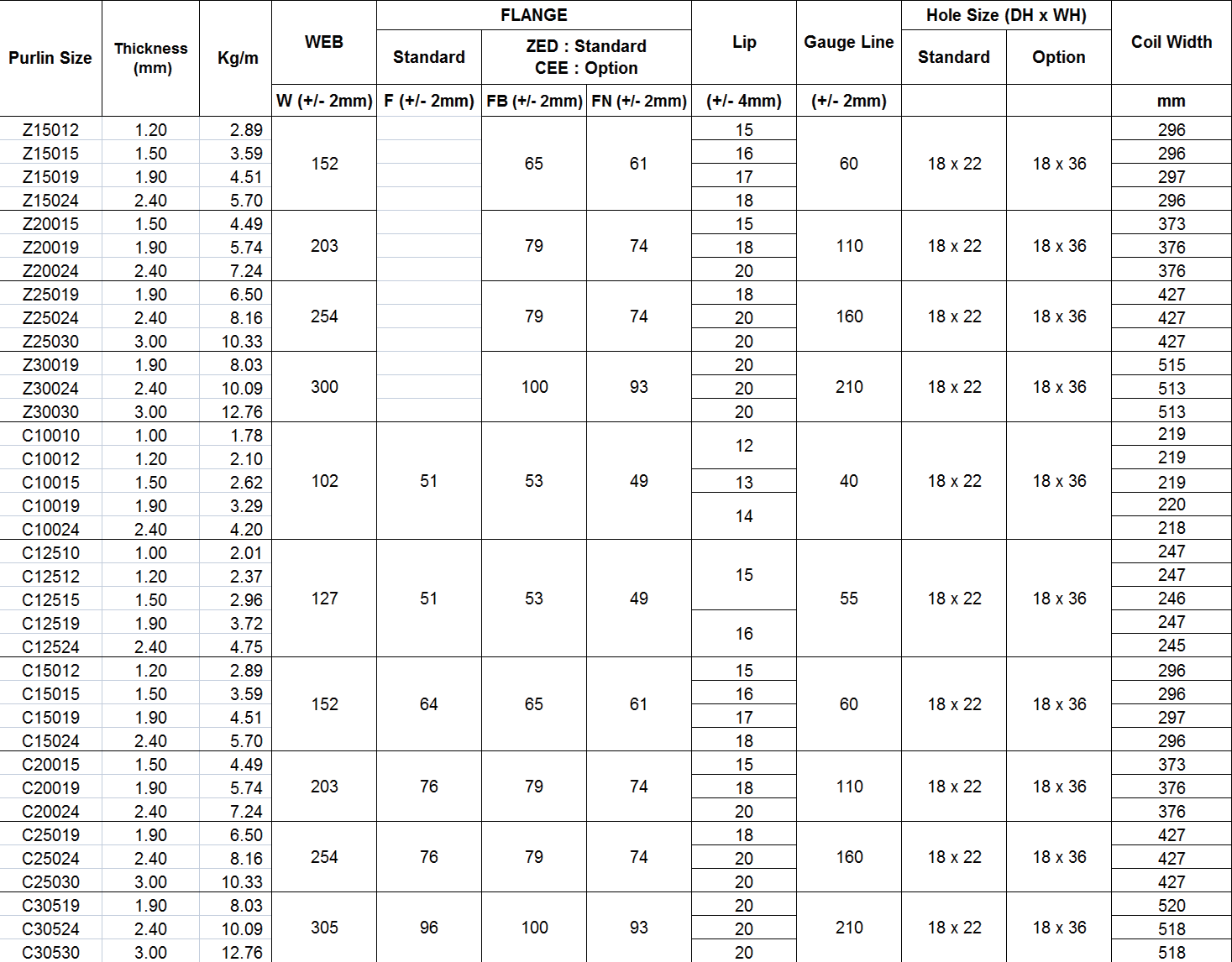

2.Product size :C Purlin 80-300mm & Z Purlin 120-300mm

3.Machine speed: Max.30 m/min (by servo motor driven)

Purlin Roll Forming Machine Main Components

Uncoiler

1.Type:Mechanical Uncoiler

2.Load capacity: 6T

Purlin Machine

1.Roller material: GCr15 with heat treatment,polishing and galvanizing

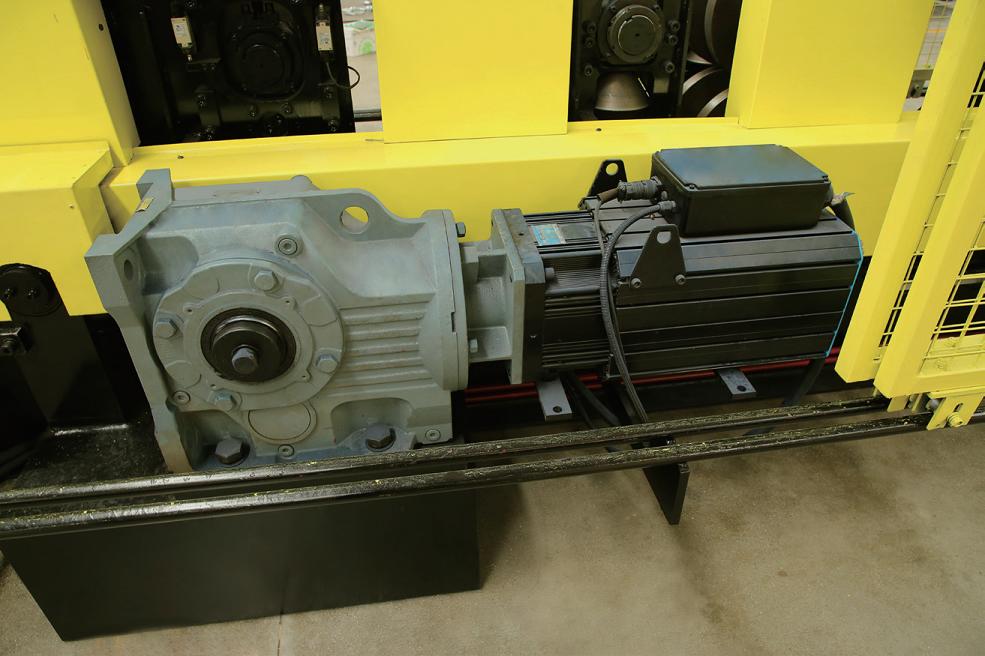

2.Main motor hydraulic motor or servo motor drive

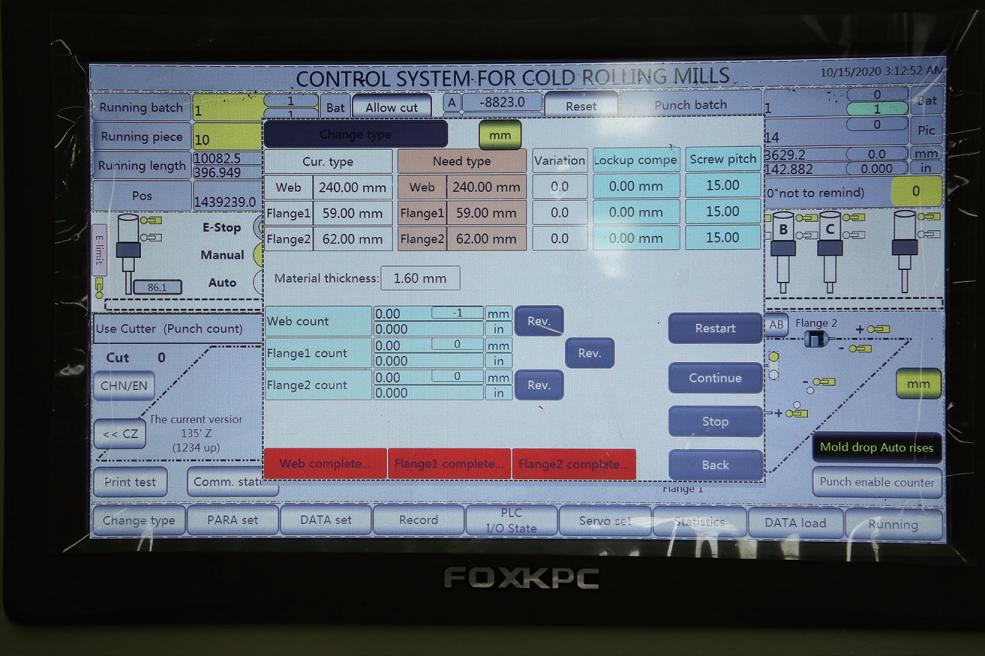

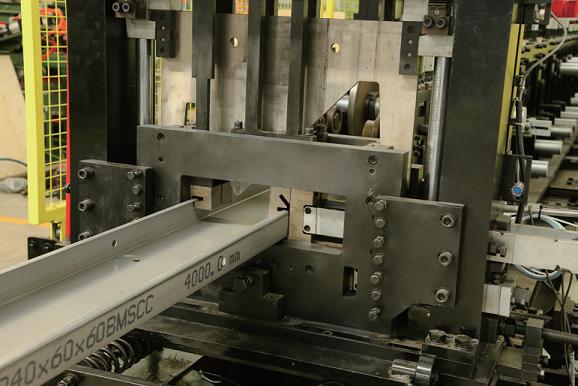

3.CZ interchange: interchange between C and Z purlins controled by PLC and set through touch panel4 size change also controlled by PLC and set through touch panel.Continuously adjustable .

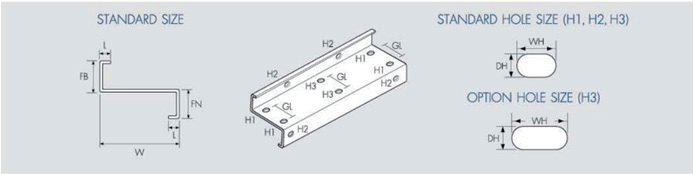

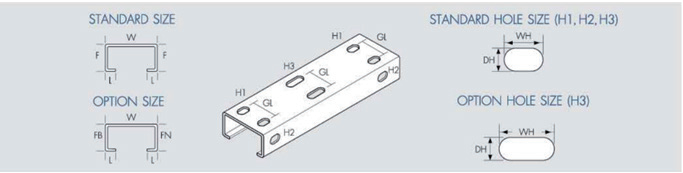

1.Profile Drawing

2.Features

One minute for size-changeovers（Motorized adjustment for C/U/Z/ Flange Height Control and Web Size Changeover，servo-adjustable，automatically move IN & OUT to position the Punch in the desired location on the web）.

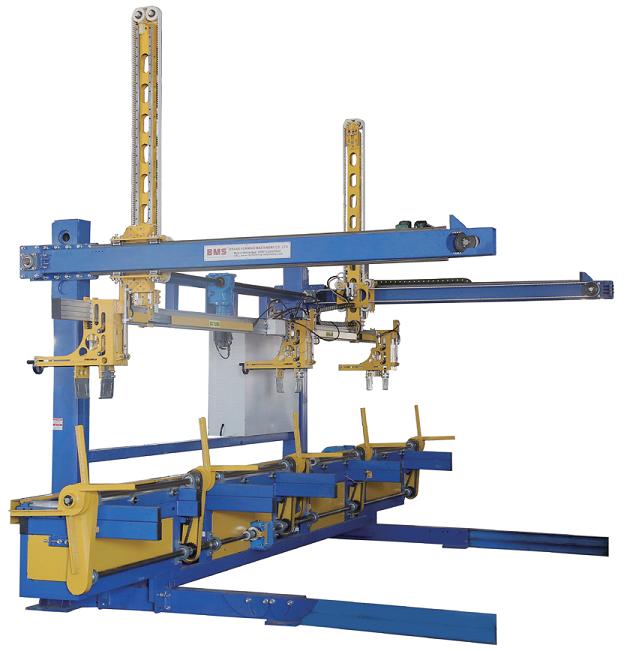

BMS's patented CZ Stacking System offers the fatest cycle times,handles the full range of Cee,U and Zee purlins.the fully automated Stacker can easily be added to any new or existing Purlin Roll Forming Line.

BMS also offer fully automated Coil Handing Systems,and Remote Support.

Heavy duty design by Taiwan，more robust and more powerful than other Chinese purlin machines.

3.Application

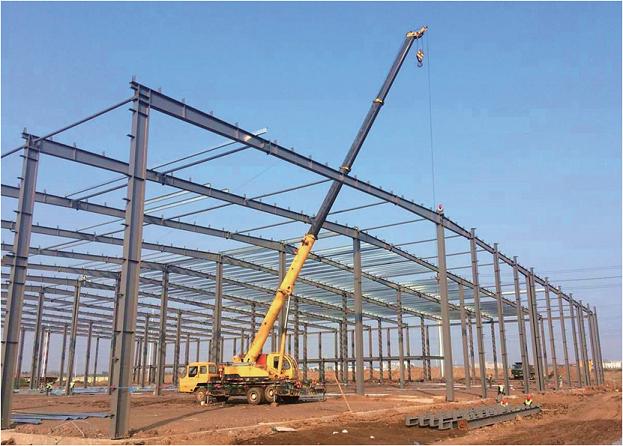

Cold-curved steel is applied in light steel house as load-bearing structures，enclosure structures，and accessories.In house buildings，cold-curved steel can be used as the main load-bearing components such as steel frame，truss，beams columns，etc.，and is also used as roof stripes，wall rack beams，keels，doors and Windows，roof panels，floor panels，floor buildings，etc.

4.Our advantage

1.Over 25 years experience in roll forming industry,nearly 10 years of OEM experience for Taiwan roll forming machines and one of China TOP 3 high quality roll forming machinery manufacturers and exporters (BMS has exported to over 100 countries and regions).

2.Support Refound Money A greement in case of bad quality.
