Flying Cutting Soalr Unistrut Rack Roll Forming Machine

Flying Cutting Soalr Unistrut Rack Roll Forming Machine

Flying Cutting Soalr Unistrut Rack Roll Forming Machine

High Speed Soalr Unistrut Rack Roll Forming Machine With Flying Cutting
  • Lead Time :

    45 workdays
  • Roll Forming Speed :

    30-40m/min
  • Model No. :

    YX41-41/52/62/72
  • Shipping Port :

    Xiamen Port
  • payment :

    TT

   High Speed Soalr Unistrut Rack Roll Forming Machine With Flying Cutting





Material Detail

Applicable Material:GI

Meterial Thickness:1.5-2.5mm

Inspection Thickness: 2.0mm

Material Strength: 195-235Mpa

The Length of Tolerance: ±1mm



Work Flow



Decoiler  Feeding Guide Device→ Roll Forming Mill→ Hydraulic Post Flyinh Cutting Device→ Exit Rack (3M)→Hydraulic System→PLC Control System

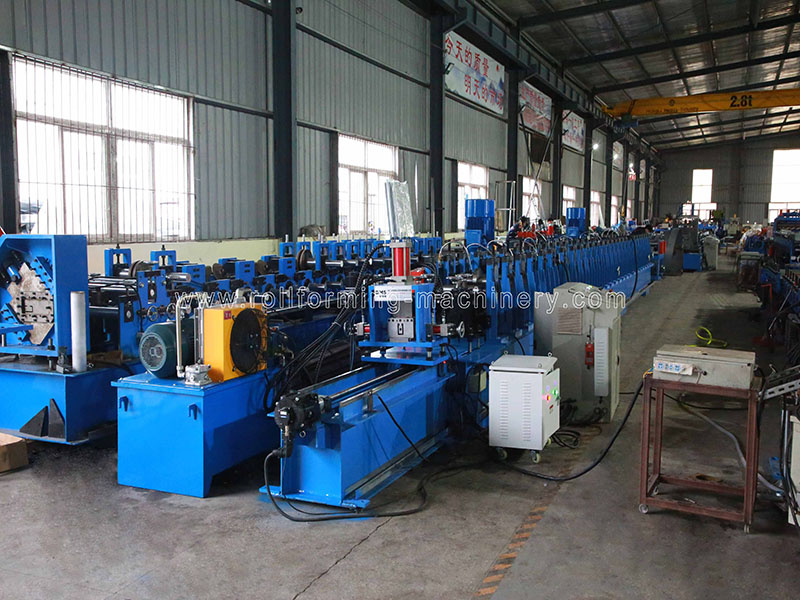

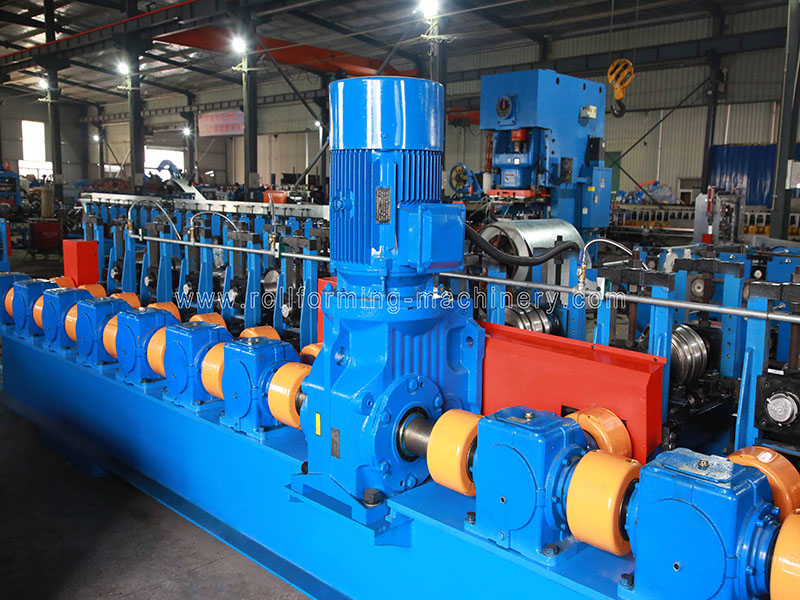

Soalr Unistrut Rack Roll Forming Machine





Soalr Unistrut Rack Roll Forming Machine





Soalr Unistrut Rack Roll Forming Machine

After Sale Servicve

1、The warranty is 24 months after the client receives the machine. Within the 24 months, we will courier the
replacement parts to the client free of charge.
2、We offer technical support for the entire life of our machines.
3、We can sent our technicians to install and train the workers in the clients' factories with extra cost.





Packing Method



Main body of machine is naked and covered by plastic film ( to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
