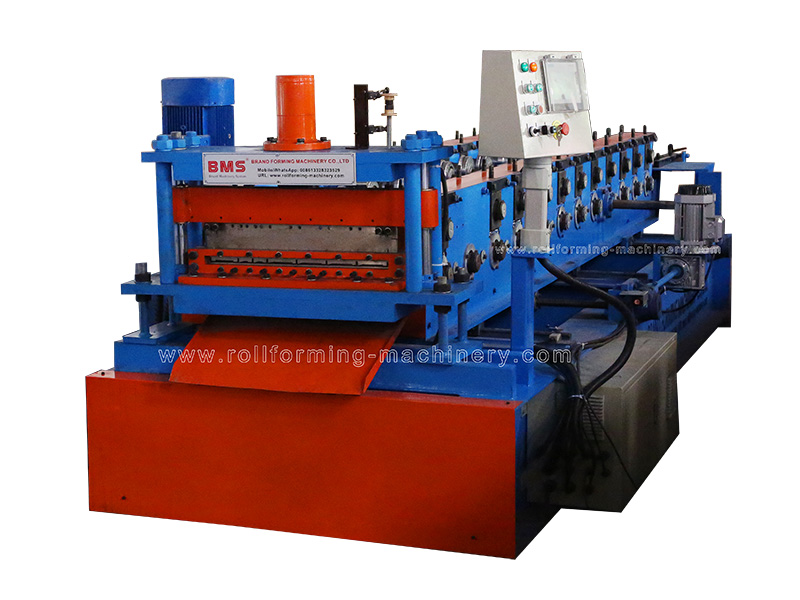

          Cable Tray Cover Roll Forming Machine

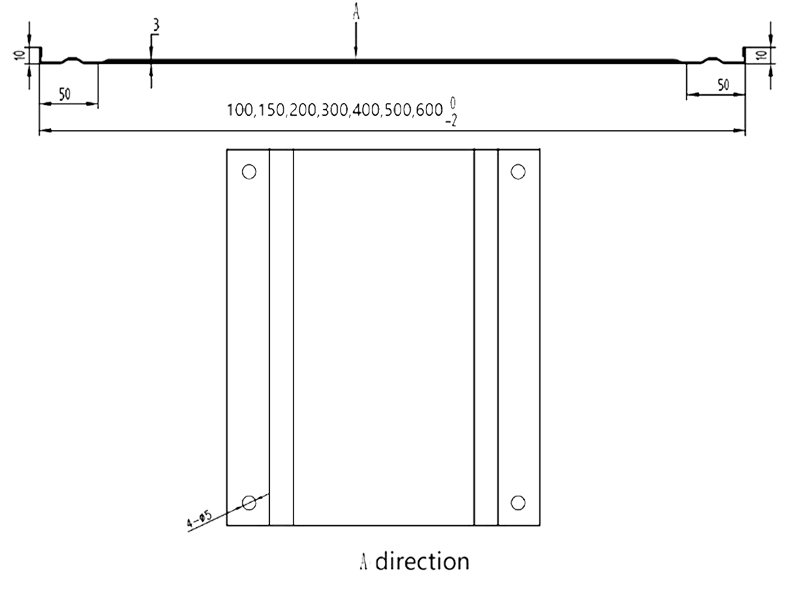

Profile

Material

The Web:100-600mm

The Flange:10mm

The Length Of Tolerance: ±0.5mm
Inspection Thickness: 0.5mm
Material Yield Strength: Q235

Work Flow

Uncoiler → Feeding Guide Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack*3 → PLC Control System → Hydraulic Station

Machine Components

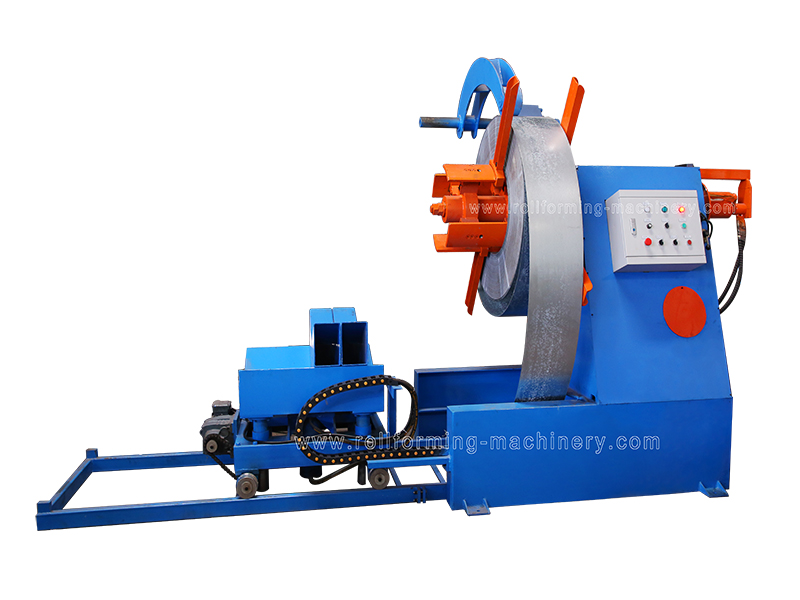

1) Uncoiler

Hydraulic control steel coil inner bore shrinkage and stop

Max Feeding Width: 700mm

Max Capacity: 5ton

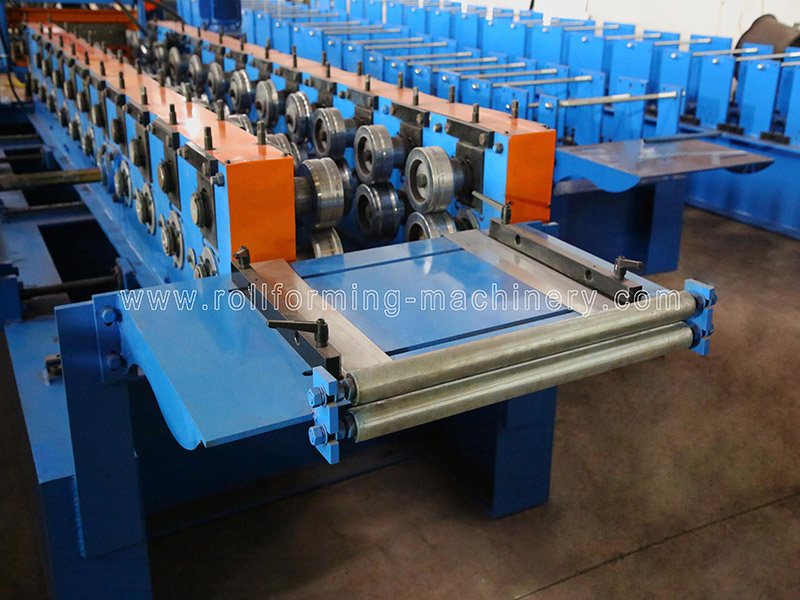

2) Feeding Guide Device

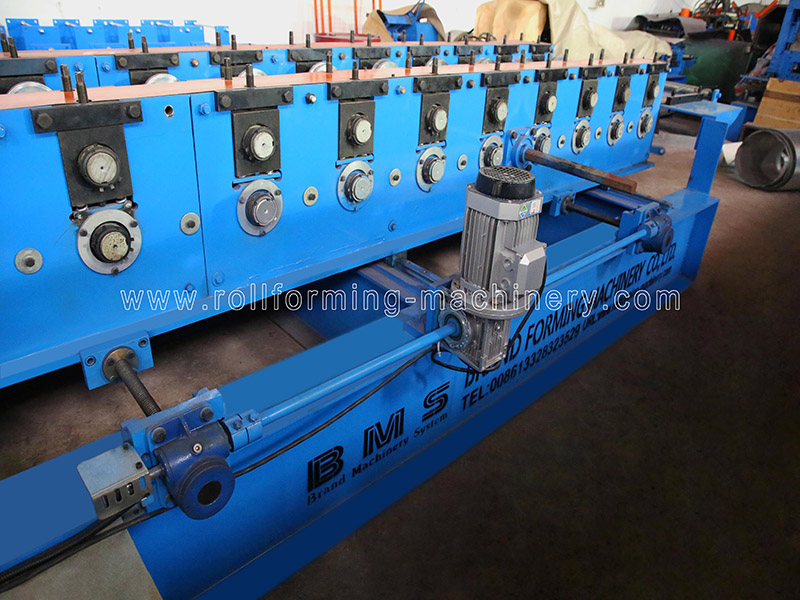

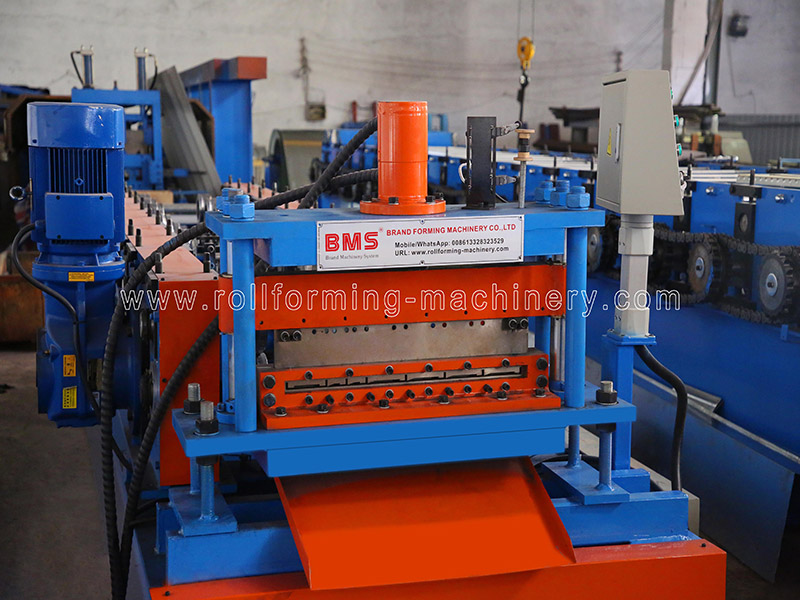

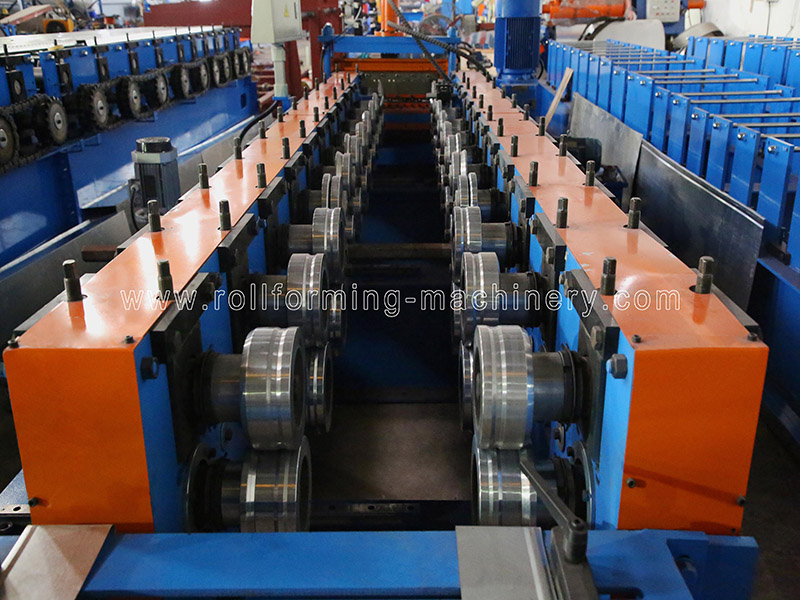

3)Roll Forming Machine

Body frame made from H450 type steel by welding

Side wall thickness: Q235 t25mm; Tie rod:ф22 Galvanized
Rollers manufactured from Bearing steel GCr15, precision machined

Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ75mm, precision machined
Gear & chain drive about 12-step to form
Main Motor= 11KW, Frequency speed control
Speed reducer motor: K series
All the screw bolts with grade 8.8 (cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Product speed: 16-20m/ min (Including cutting time)

4) Hydraulic Post Cutting Device

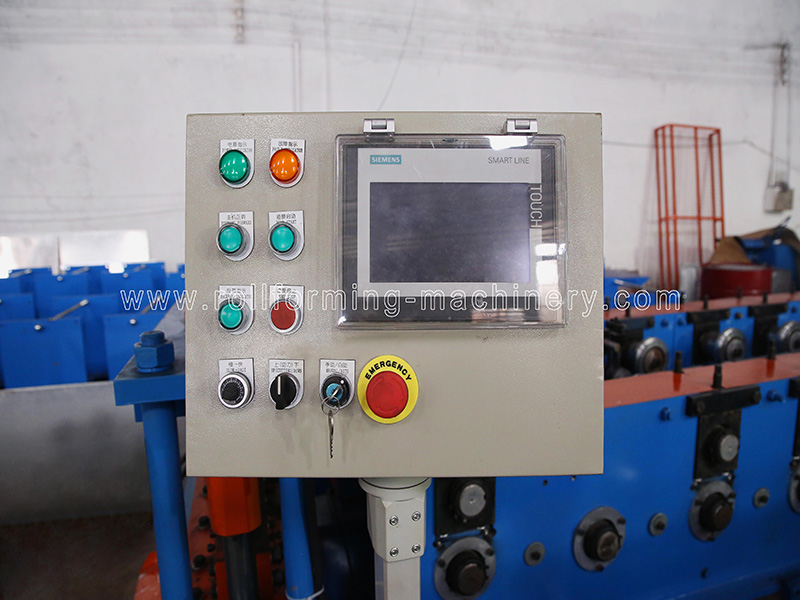

5) PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data (Production Batch, pcs, Length, etc.) On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc

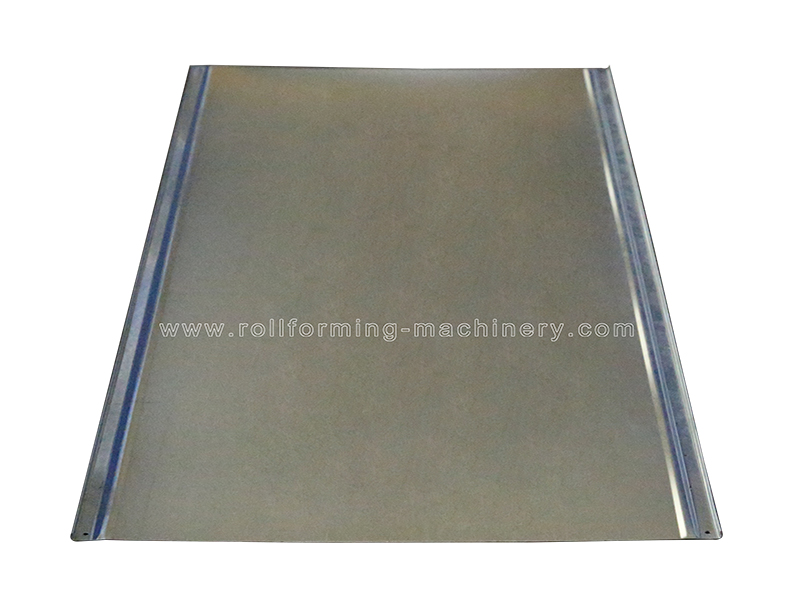

6) Product Show

After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost

Packing method

Main body of machine is naked and covered by plastic film (to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
